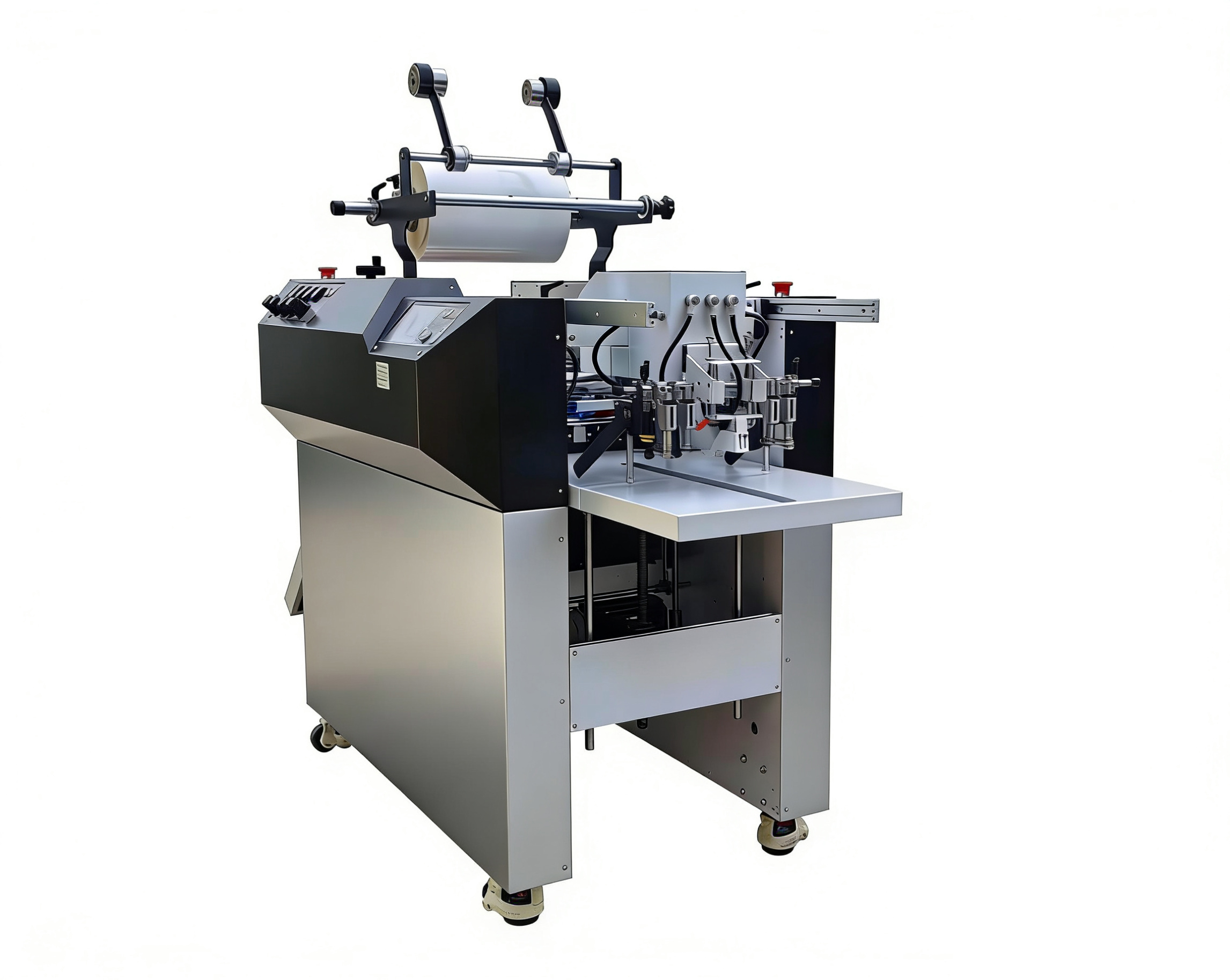

    BY-390 AD
    Fully automatic double-sided laminating machine
    Main technical parameters
    Max. size of roll film: 0.39 m ×3000 m
    Applicable dimension of reel for roll film: Φ75 mm
    Applicable thickness of paper core:
    Laser printing paper:135～350 g/㎡
    Printing paper:157～350 g/㎡
    Max. applicable size of printed matter: 390×700 mm
    Min. applicable size of printed matter: 200×300 mm
    Speed regulation range：1～10 m/min
    Temperature range of first rollers：80～140℃
    Temperature range of second rollers：80～130℃
    Operation and display system：touch screen
    Pressurization mode：Air pressure
    Heating mode：Oil heating
    Rated input power：7500 W
    Rated input voltage：AC 3 P/N/PE  400 V，50/60 Hz

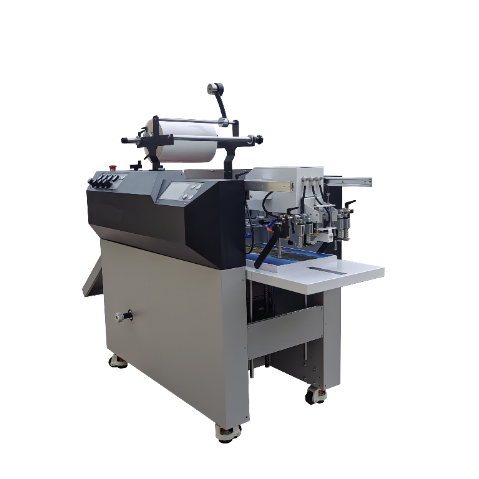

    BY-390 AY
    Fully automatic embossing machine Main technical parameters
    Max. size of roll film: 0.39 m ×3000 m
    Applicable thickness of paper core:128～350 g /㎡
    Max. applicable size of printed matter:390×700 mm
    Min. applicable size of printed matter:200×300 mm
    Speed regulation range:1～10 m/min
    Main roller temperature adjustment range:80～130℃Temperature adjustment range of embossing roller:80～140℃
    Heating method:Quartz tube infrared heating
    Warm-up time: 10 min（100℃）
    Main roller pressure：Air pressure
    Embossing roller pressure：Air pressure
    Max. size of roll film 0.39m ×3000 m
